Rough terrain diesel telescopic booms are built with long reach
hard to get to places in mind. They offer a larger horizontal reach
than articulated booms. They are simple and easy to operate with
smooth, proportional controls making fast, straight forward and
safe access to overhead locations.
A powerful diesel engine with four wheel drive and an oscillating
axle provide increased traction when travelling on rough terrain.
Machines with working heights up to 28m are available for our
hire fleet.
Boom Lift Hire: Telescopic Platforms
Standard operating features include:
•
Four wheel drive, (up to 45% grade ability)
•
Foam filled tyres, (eliminate puncture costs and reduce down
time)
•
Oscillating axle, (provides increased traction when travelling)
•
360 degrees continuous rotation
•
Drive at full height
•
Load sensing system

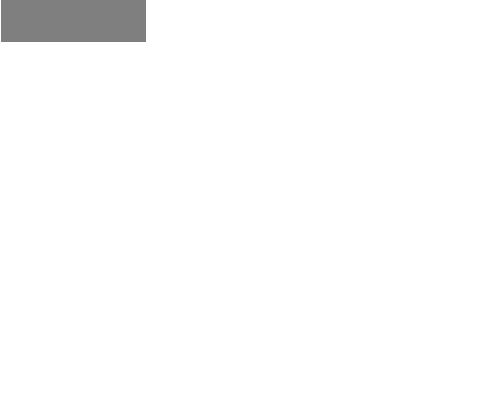

16m Working Height Platform
Model:
S45
Width:
2.24mm
Working Height:
11m
Machine Weight:
7005kg
Lift Capacity:
227kg
More of What You Need to Get the Tough Jobs Done -
Faster lift speeds, powerful engine and low-profile chassis covers.
Positive traction drive maintains equal power to all drive wheels.
360˚ continuous rotation turntable rotates full circle for quick and
flexible positioning. Minimal tailswing allows to manoeuvre in tight
work spaces. Exceptional horizontal outreach and a rotating, self-
levelling platform. For added flexibility, the articulating jib boom
option offers an extra 1.52 m of horizontal or vertical reach and 135˚
of working range.

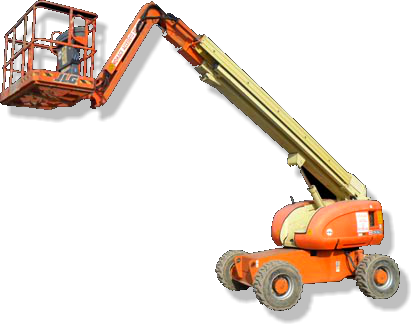

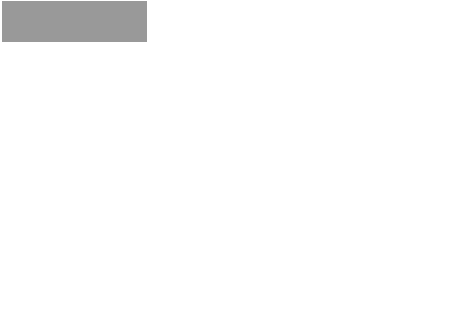

20m Working Height Platform
Model:
600SJ
Width:
2.44m
Working Height:
20.29m
Machine Weight:
10800kg
Lift Capacity:
230kg

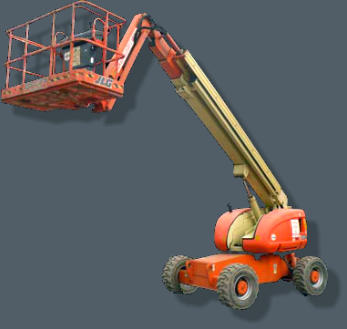

The 600SJ has fast boom and drive speeds to improve work productivity. An
articulating fly jib allows for greater versatility when positioning the
platform.

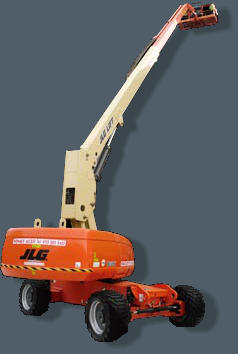

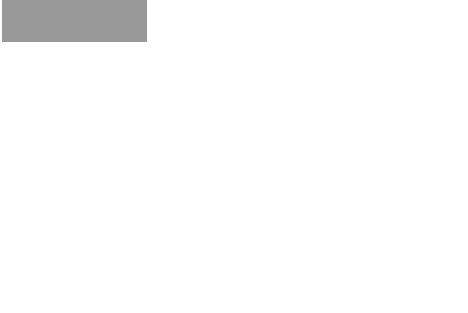

22m Working Height Platform
Model:
660SJ
Width:
2.44m
Working Height:
22.12m
Machine Weight:
13115kg
Lift Capacity:
230kg
The 660sj is the same basic design as the 600sj with a larger working
envelope. It has a 17.3m horizontal reach. As with all JLG machines
build quality and reliability ensure maximum productivity.

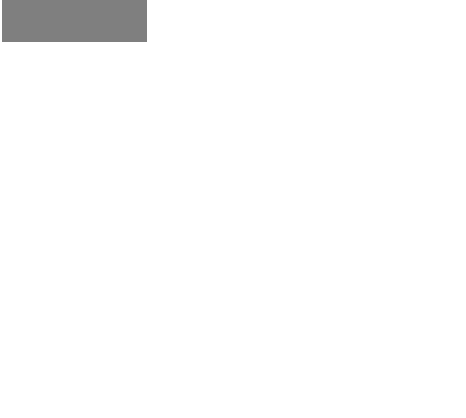

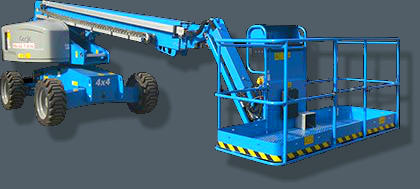

22m Working Height Platform
Model:
s65
Width:
2.49m
Working Height:
21.80m
Machine Weight:
10445kg
Lift Capacity:
227kg

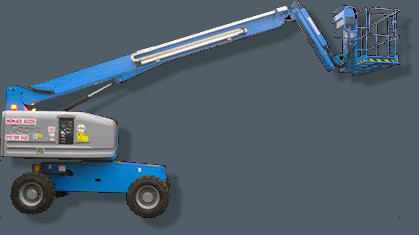

The Genie S65 is more compact and lighter than other manufactures
equivalents. Faster lift speeds, a powerful engine and low-profile
chassis covers. Positive traction drive maintains equal power to all
drive wheels. 360˚ continuous rotation turntable rotates full circle
for quick and flexible positioning. Minimal tailswing allows to
manoeuvre in tight work spaces. Exceptional horizontal outreach and
a rotating, self-levelling platform allows precise positioning exactly
where you need to work. For added flexibility, the articulating jib
boom offers135˚ of working range.

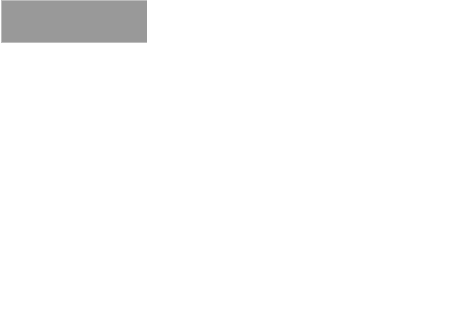

28m Working Height Platform
Model:
860SJ
Width:
2.49m
Working Height:
28.21m
Machine Weight:
16490kg
Lift Capacity:
230kg
The 860sj has a huge 22.8m horizontal outreach. An articulating fly jib,
oscillating axle and four wheel drive all combine to make this a highly
productive machine in any situation.
0113 2822433
Tel:
0113
2822433
Boom Telescopic Platforms
Rough terrain diesel telescopic booms are built with long reach hard to get to
places in mind. They offer a larger horizontal reach than articulated booms.
They are simple and easy to operate with smooth, proportional controls making
fast, straight forward and safe access to overhead locations.
A powerful diesel engine with four wheel drive and an oscillating axle provide
increased traction when travelling on rough terrain.
Machines with working heights up to 28m are available for our hire fleet.
Standard Operating Features Include….
•
Solid or foam filled tyres
•
4 Wheel drive (up to 45% grade ability)
•
Load sensing system
•
Drive at full height
•
Oscillating acle (Provides increased traction when travelling)
•
360 degrees continuous rotation
