Battery boom lifts are ideal for indoor use. They have zero
emissions and quiet operation. A compact articulating design
helps to reach into difficult locations. Narrow isle machines like
the Genie Z30 is just 1.19m wide, with zero tail swing and an
outreach of 6.25m. It also has a fly jib with jib rotation that
allows for greater versatility when positioning the platform
around obstacles. They charge over night to give a full days
operation.
Bi-Fuel Option
Some models are available with a Bi fuel option. They have both
batteries for indoor use and a diesel engine for out door use,
giving greater versatility
Boom Lift Hire: Battery Platforms
Standard operating features include:
•
Solid or foam filled tyres
•
Built in 110 volt charger
•
Load sensing system
•
Drive at full height.
•
Non marking tyres
•
Jib plus rotation
10m Working Height Platform
Model:
Toucan10E
Width:
0.99m
Working Height:
10.10m
Machine Weight:
2990kg
Lift Capacity:
200kg

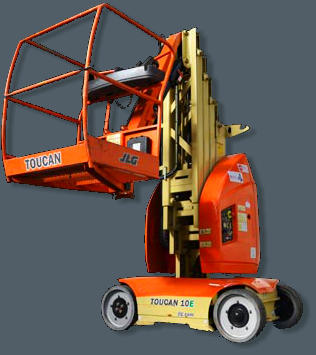

Features: 25% gradeability and improved ground clearance. Direct
electric drive with brushless AC motors. Lower maintenance &
running costs. Simplified controls with super smooth operation .
Reduced machine weight with compact dimensions
11m Working Height Platform
Model:
Z30/20N
Width:
1.9m
Working Height:
11m
Machine Weight:
6450kg
Lift Capacity:
227kg

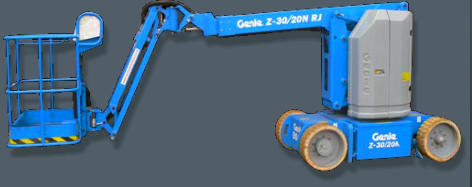

Zero tailswing and zero front arm swing in stowed and raised working
positions, along with its 47 in (1.19 m) wide chassis, make this boom
the only one with true narrow aisle access. The all-new Sep-Ex drive
motors and controller provide automatic hill braking and ramp
braking.
12m Working Height Platform
Model:
HR12N
Width:
1.5m
Working Height:
12.2m
Machine Weight:
3100kg
Lift Capacity:
200kg

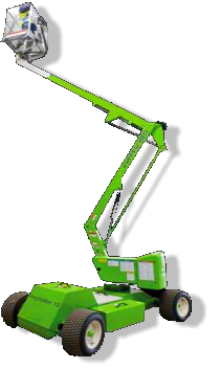

The Nifty Lift HR12N is a light weight battery powered boom. With a 1.5m
narrow chassis, its ideal for working in factories, warehouses or anywhere
that space is restricted. Models are available with a Bi-Energy diesel
engine option that allows them to work for extended periods both indoors
and outdoors.
15m Working Height Platform
Model:
HR15N
Width:
1.5m
Working Height:
15.50m
Machine Weight:
7250kg
Lift Capacity:
225kg

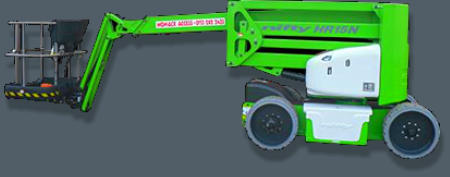

The Nifty HR15N is the narrowest machine in its class at only 1.5m
wide, zero tail swing, and an impressive working outreach of 9.7m,
together with none marking tyres this machine is ideal for indoor
restricted spaces. Its hybrid power system delivers the ultimate
combination of diesel or battery power.
16m Working Height Platform
Model:
Z45/25J
Width:
1.79m
Working Height:
15.187m
Machine Weight:
7394kg
Lift Capacity:
227kg

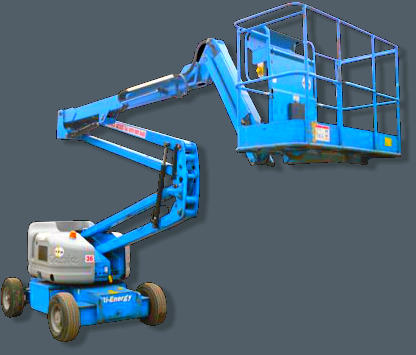

The Z45/25 battery boom offers an outreach of 7.65m with a chassis
width of 1.79m, and zero tail swing. It’s also available with a bi fuel
option diesel engine. This makes it suitable for both indoors and
outdoors use.
17m Working Height Platform
Model:
HR17N
Width:
1.7m
Working Height:
17m
Machine Weight:
7650kg
Lift Capacity:
225kg
The Nifty HR17N is only 1.5m wide and 2m high enabling it to travel through
restricted spaces. Zero tail swing and 9.7m working outreach help to reach
awkward job sites. Its Hybrid battery or diesel power system together with
none marking tyres make it ideal for maintenance or industrial work.
20m Working Height Platform
Model:
Z60/37 FE
Width:
2.49m
Working Height:
20m
Machine Weight:
7756kg
Lift Capacity:
227kg

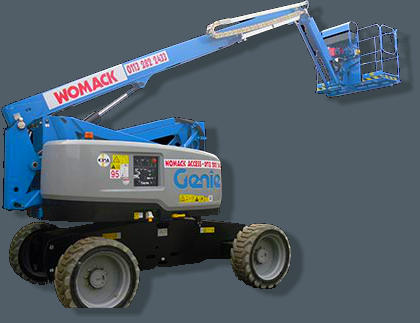

The Genie Z60 FE is ideal for indoor or outdoor applications. Battery power,
none marking tyres and low noise give clean indoor performance. Outdoors
with its Hybrid battery and low emission Tier 4 diesel engine power, its four
wheel drive system can handle tough construction sites.
21m Working Height Platform
Model:
HR21
Width:
2.27m
Working Height:
20.8m
Machine Weight:
7756kg
Lift Capacity:
225kg

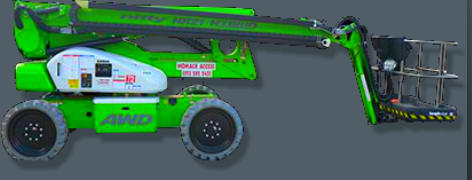

The HR21 Hybrid is a light weight boom suitable for indoor and outdoor
applications. Its compact design, none marking tyres, battery power and low
noise are ideal for indoor use. This machine is equally suited to outdoor
applications with its Hybrid battery and diesel powered all wheel drive
system.
12m Working Height Platform
Model:
Toucan12E
Width:
1.2m
Working Height:
12.65m
Machine Weight:
4900kg
Lift Capacity:
200kg

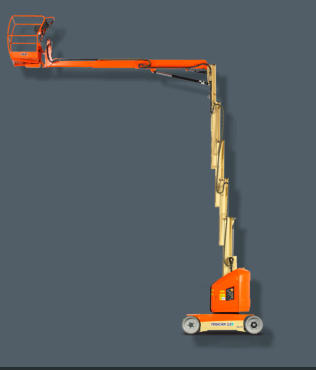

The JLG Toucan 12e Plus provides enhanced accessibility, with greater
vertical and horizontal reach due to its heavy-duty forklift style mast
and a telescoping fly jib. It has compact dimensions and precise
controls, near silent running with responsive AC driver motors for
greater torque and efficiency.
6.5m Working Height Platform
Model:
GR15
Width:
0.75m
Working Height:
6.5m
Machine Weight:
994kg
Lift Capacity:
227kg

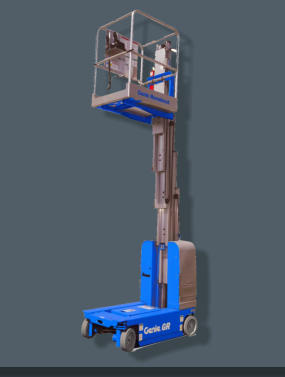

The Genie GR15 is a compact narrow machine, it can be driven
through doorways with an operator on board, it is also light enough to
fit in to most passenger lifts. Excellent manoeuvrability with zero
inside turning radius and non-marking solid rubber tyres.
